This classic Dutch row house was in poor structural condition, requiring a thorough reinforcement of the foundation and load-bearing structure. In spite of its structural issues, the brick building had great potential, as well as strong aesthetic and functional qualities with glass-in-lead detailing, and classic 'en-suite' room separations.

A combination of intrepid clients, and an ambitious design vision has resulted in a dramatic redesign, which facilitated drastic moves in an otherwise commonplace apartment renovation. Voids and split levels now accentuate its full height. The rear façade has been removed and clad with glass to a full height of 11 meters. Floor levels have been detached from the façade, creating a void that spans three levels and generates an abundance of daylight for the interior. In the back of the house, the load-bearing wall between the corridor and the living room has been replaced with a steel construction, while four new floors extend from this construction.

These are connected to the existing floor levels, but the interplay of voids, split-levels, and a full glass façade, craft a spectacular drama between interior and exterior on the one hand, and between the existing and new floors on the other. The new build in the back of the house is a three-dimensional, L-shaped element of five stories, accessed by an elegant steel staircase, which introduces a new dynamic between the different parts of the house. It also facilitates a separation of functions (owners and guests, for example). Vertically, the L-shaped element ends in a roof-terrace, with a jacuzzi and outer kitchen lying far away and above the balconies of the lower floors.

Playing upon the tension between antique features and contemporary style, the renovation restores the classical street façade to its former glory, but offers something bold and new behind closed doors. To the owner, the residence promises an extraordinary living experience within a classic context. To passers-by, it maintains the quiet guise of the classic row house.



joyce wierda.jpg

joyce wierda

client



"Early on we weren’t sure if it would all work out. The new design that P·A suggested was quite extreme… Frankly, I was enthusiastic about it from the very first presentation – I have a soft spot for architecture and design. But my husband, who works in the financial sector, had to warm up to the idea. In the end we were both right: the remodel turned out to be a bit more expensive and took a bit longer than we’d originally hoped, but we haven’t regretted it for one second. I don’t think we could ever live somewhere else."

MARU Magazine.jpg

maru magazine

published in MARU, a Korean 'interior, lifestyle design' magazine - volume 153, December 2014

"The tension between antique features and modern techniques is very evident in the redesign plan. The interplay of voids, the split levels and the glass facade, all create a spectacular drama between interior and exterior on the one hand, and between the existing and new floors on the other."


Maarten polkamp

architect and construction manager



"During our first visit to the house I saw that the structural conduction was terrible: the foundation was in need of replacement and the back wall was caving in. Ironically, this provided opportunity. We presented Joyce and Jeroen an important choice: do you want a nice, sound architectural plan or do you want a house that’s unlike one you’ll ever find anywhere else?"


rear facade showing split levels culminating in the roofterrace

rear facade showing split levels culminating in the roofterrace

kitchen, dining room and library are in direct relation

kitchen, dining room and library are in direct relation

view from kitchen showing restored ensuite seperation giving acces to the classical front of the house

view from kitchen showing restored ensuite seperation giving acces to the classical front of the house

dining room

dining room

looking into the void from the third level down

looking into the void from the third level down

view on garden with elevated terrace

view on garden with elevated terrace

connection between the different floors via the created void

connection between the different floors via the created void

wardrobe with direct link to master bathroom

wardrobe with direct link to master bathroom

the rear facade is clad with Douglas elements, finished with black sansin-oil

the rear facade is clad with Douglas elements, finished with black sansin-oil

spiral stairs giving acces to roof terrace

spiral stairs giving acces to roof terrace

view along guest bathroom on atelier space with Douglas clad roof

view along guest bathroom on atelier space with Douglas clad roof

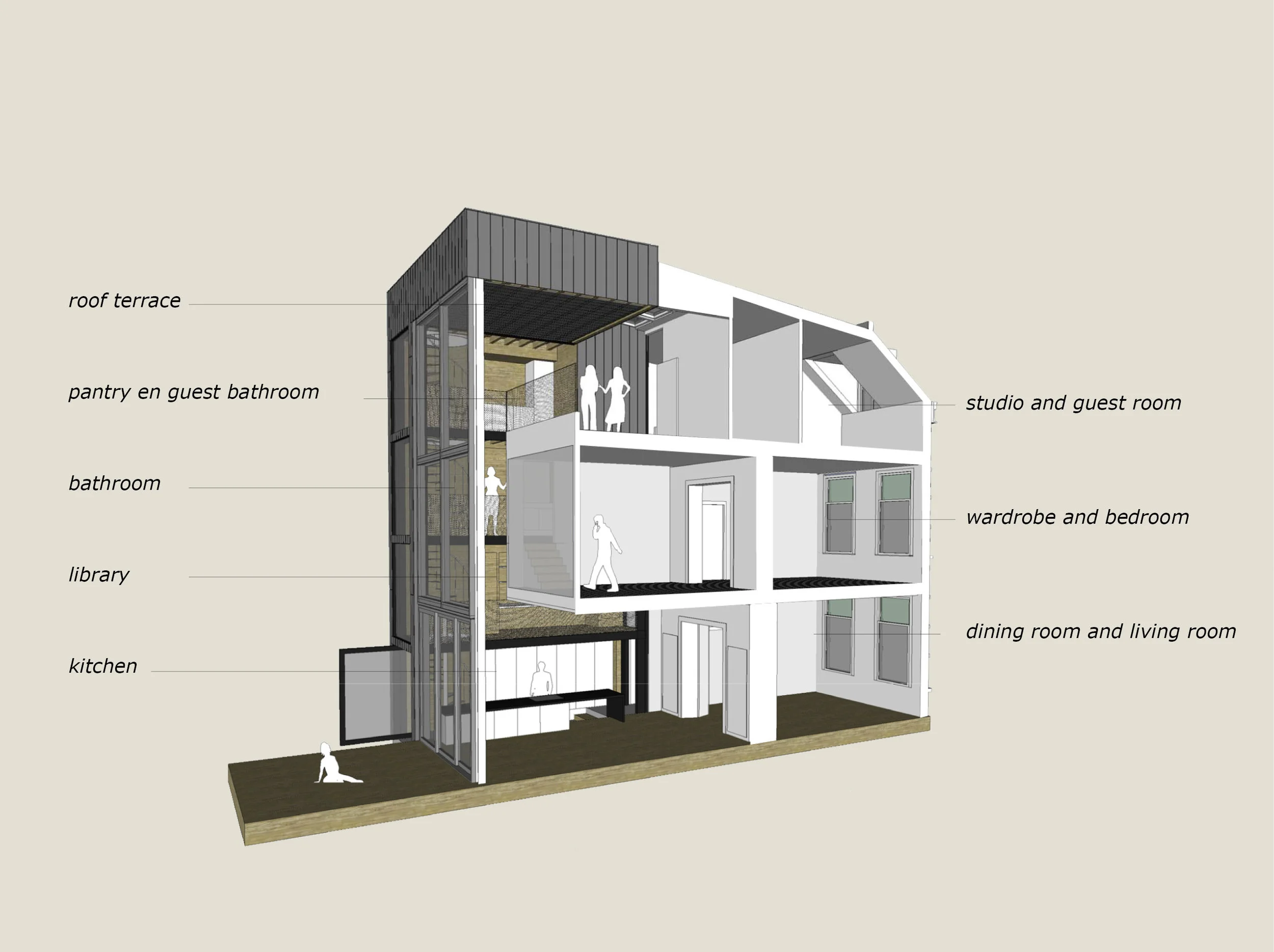

section showing the modern day addition in relation to classical front of the house

section showing the modern day addition in relation to classical front of the house

bedroom with wardrobe behind polycarbonate screen

bedroom with wardrobe behind polycarbonate screen

ersonal-Architecture-a bold intervention-The Hague.jpg

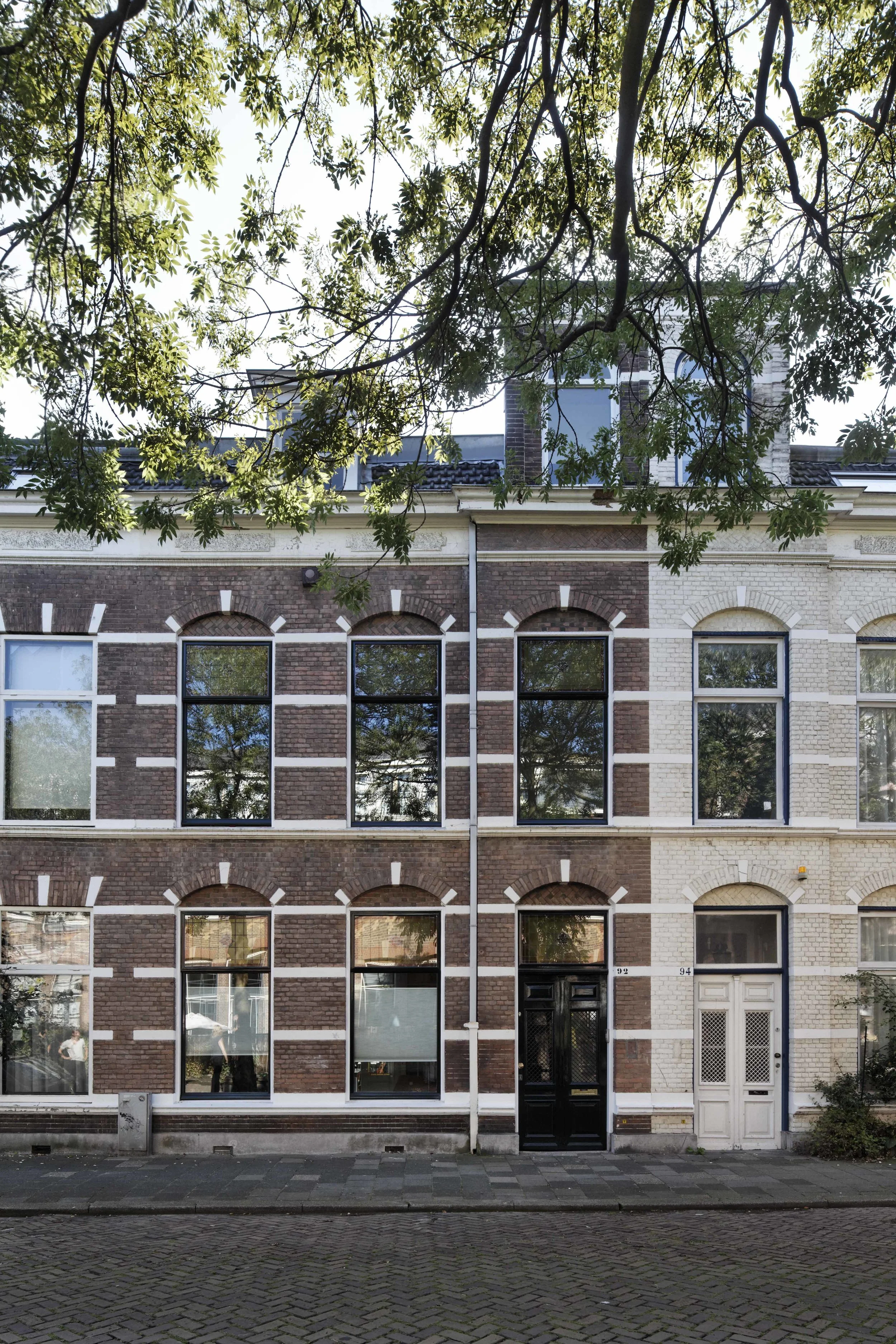

the facade on the street side is, in contrast with the rear facade, not any different from the neighbours houses

the facade on the street side is, in contrast with the rear facade, not any different from the neighbours houses

ersonal-Architecture-a bold intervention-The Hague.jpg
ground floor plan

ground floor plan

floor of the library

floor of the library

first floor plan

first floor plan

second floor plan

second floor plan

roof terrace plan

roof terrace plan



client
Joyce & Jeroen

address
Van Merlenstraat, The Hague, The Netherlands

completed
2011

contractor
Kokke Aannemersbedrijf B.V., Nijmegen / Interdam, Ridderkerk

advisors
ATKO advies en engineering

role P·A
architect, interior architect, project manager & contractor

project photos
René de Wit & Jansje Klazinga
